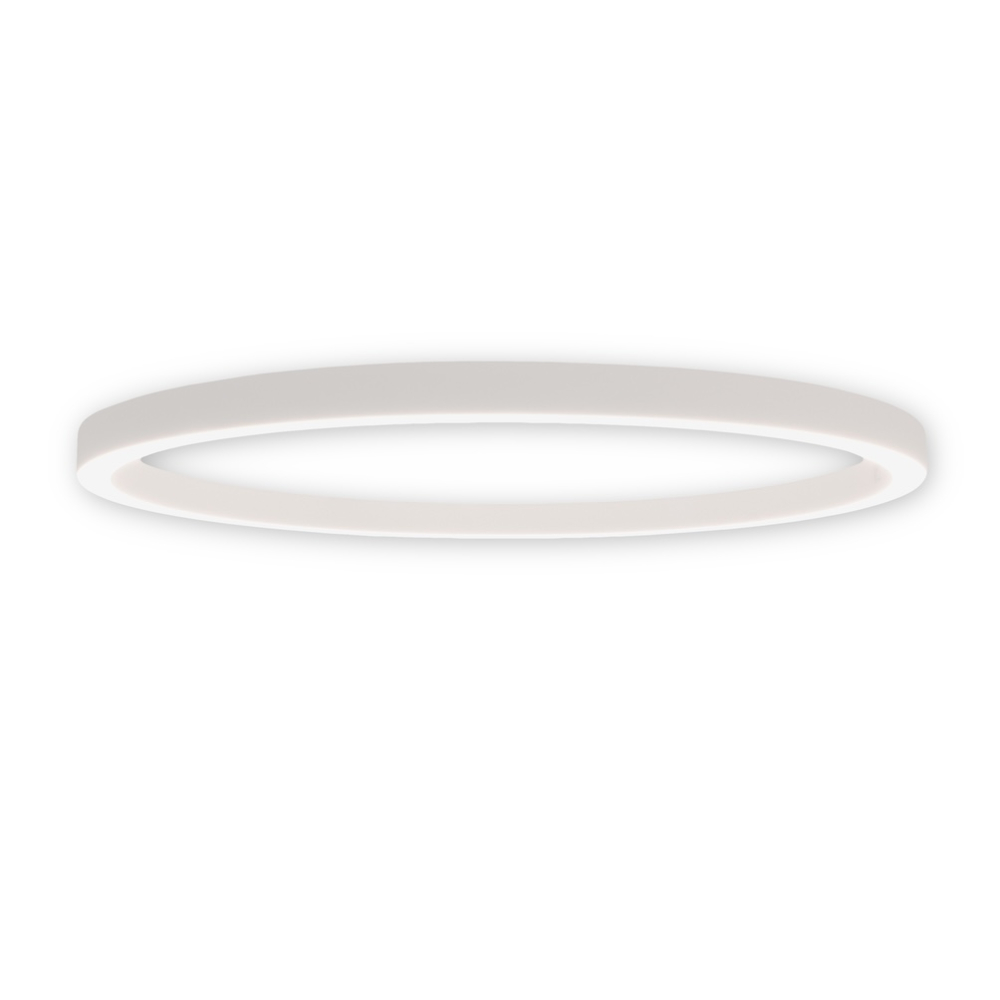

MINALOX RING DUALWHITE 5060 D1000 DIR/INDIR 24V 1800-4500K WHITE
MINALOX RING DUALWHITE 5060 D1000 DIR/INDIR 24V 1800-4500K WHITE
Parametre
| Chromatickosť (CCT) | DIR 1722K/4252K,INDIR 1718/4270K |
|---|---|
| Dĺžka pripojovacieho káblu (mm) | 1900 |
| Dĺžka závesného lanka (mm) | 1900 (nastaviteľná) |
| Farba | biela |
| Frekvenčný rozsah | 100Hz - 20kHz |
| Index podania farieb CRI DIR | 1722K CRI> 94/4252K CRI> 95.6 |
| Index podania farieb CRI INDIR | 1718K CRI> 93.8/4270K CRI>95.5 |
| Kompatibilita | LOXONE, TapHome, Ampio, KNX, ďalšie systémy s PWM ovládaním |
| Materiál | Hliník + PC kryt |
| Montáž | závesná na 3 bodoch |
| Napájacie napätie | 24V DC |
| Nominálny výkon (W) | 242 |
| Optika svietidla | Matný difúzor (PC) |
| Povrchová úprava | práškové lakovanie, RAL 9005 (jemná štruktúra, čierna) |
| Prevádzková teplota | -20°C - 50°C |
| Prevedenie | DUALWHITE |
| Priemer (mm) | 1000 |
| Príkon (W) DIR | 62,84/63,16 (1800K/4500K) |
| Príkon (W) INDIR | 62,23/62,29 (1800K/4500K) |
| Pripojenie | 5-žilové alebo 3-žilové |
| Riadenie | PWM stmievanie (0–100 %) |
| Stupeň krytia | IP20 |
| Svetelná účinnosť (lm/W) DIR | 47,63/75,02 (1800K/4500K) |
| Svetelná účinnosť (lm/W) INDIR | 40,78/64,56 (1800K/4500K) |
| Svetelný tok (lm) DIR | 3152lm/5126lm (1800K/4500K) |
| Svetelný tok (lm) INDIR | 2740lm/4461lm (1800K/4500K) |
| Šírka (mm) | 50 |
| Typ | Ringlight |
| Uhol svietenia | 105° |
| Vyhotovenie | Závesné, prstencové |
| Výška (mm) | 60 |
| Vyžarovací uhol | 105° |
| Záruka | 5 rokov |
| Životnosť (h) | 50000 |
Fotogaléria
-

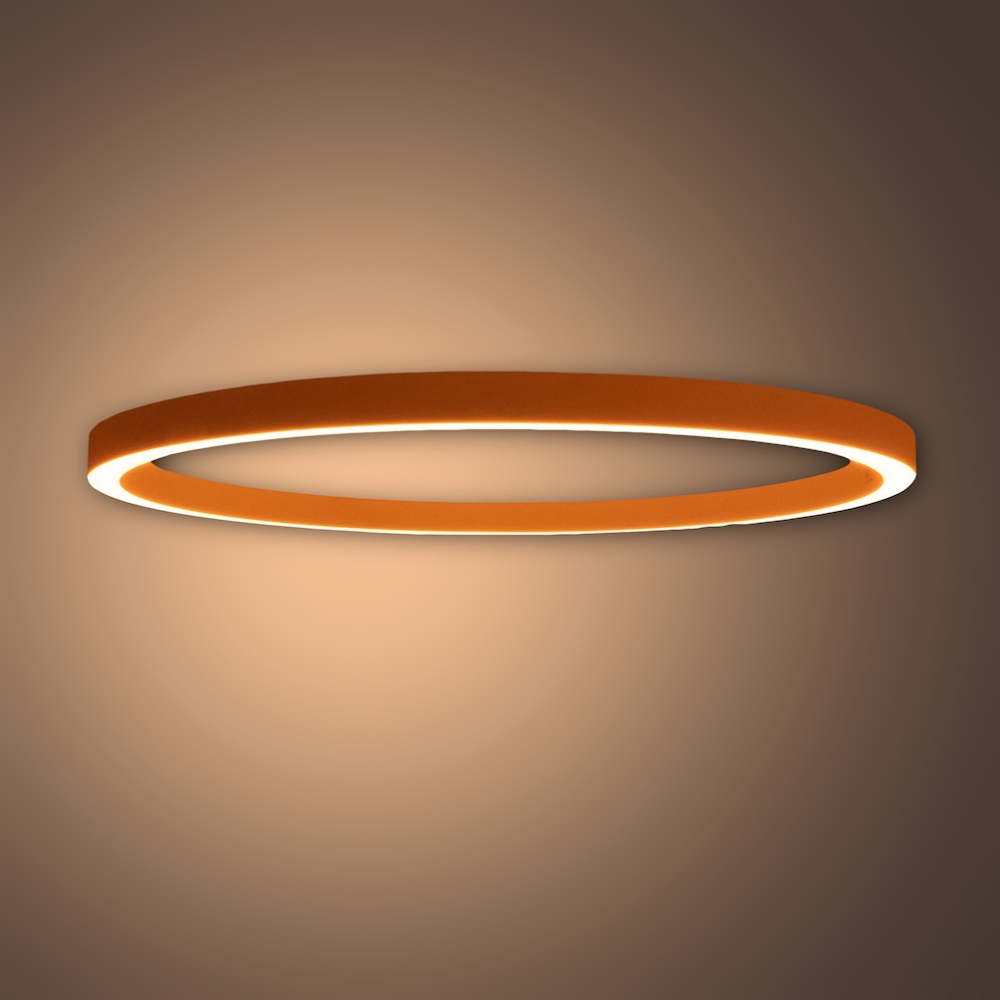

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_tepla
-

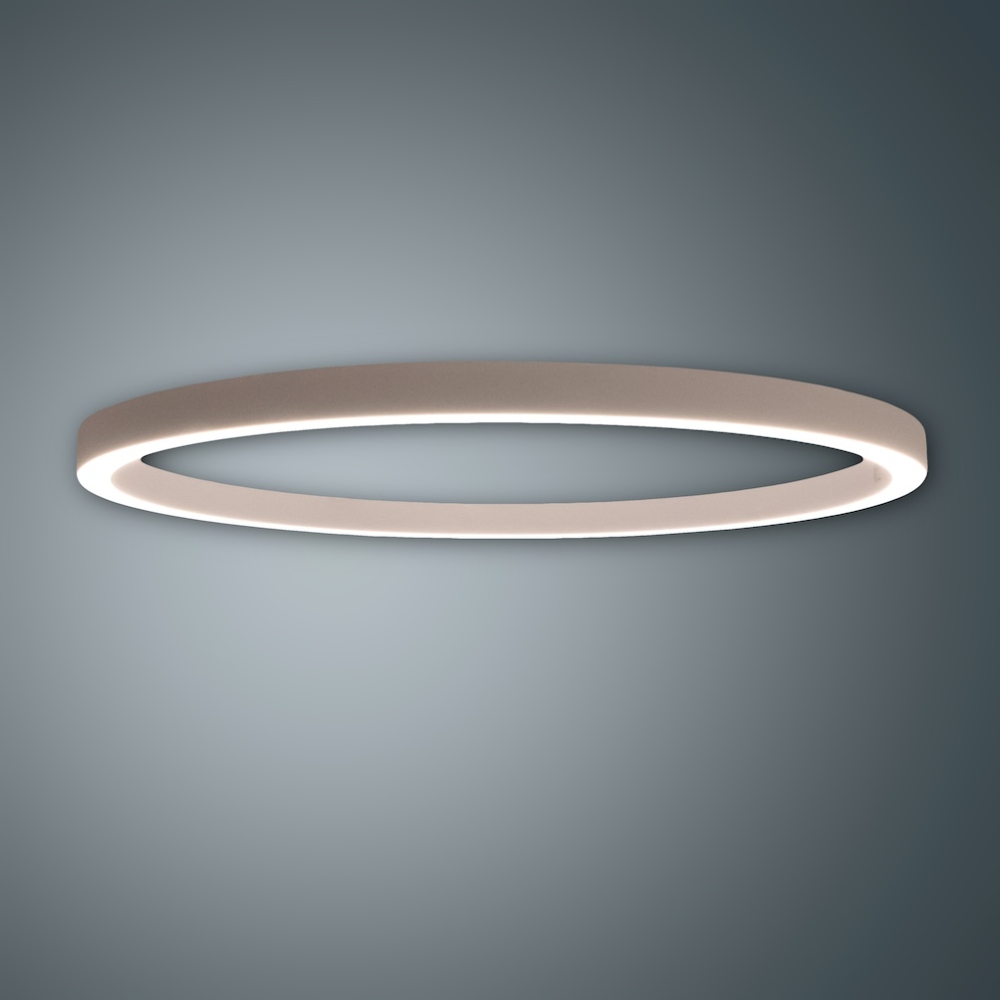

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_stude
-

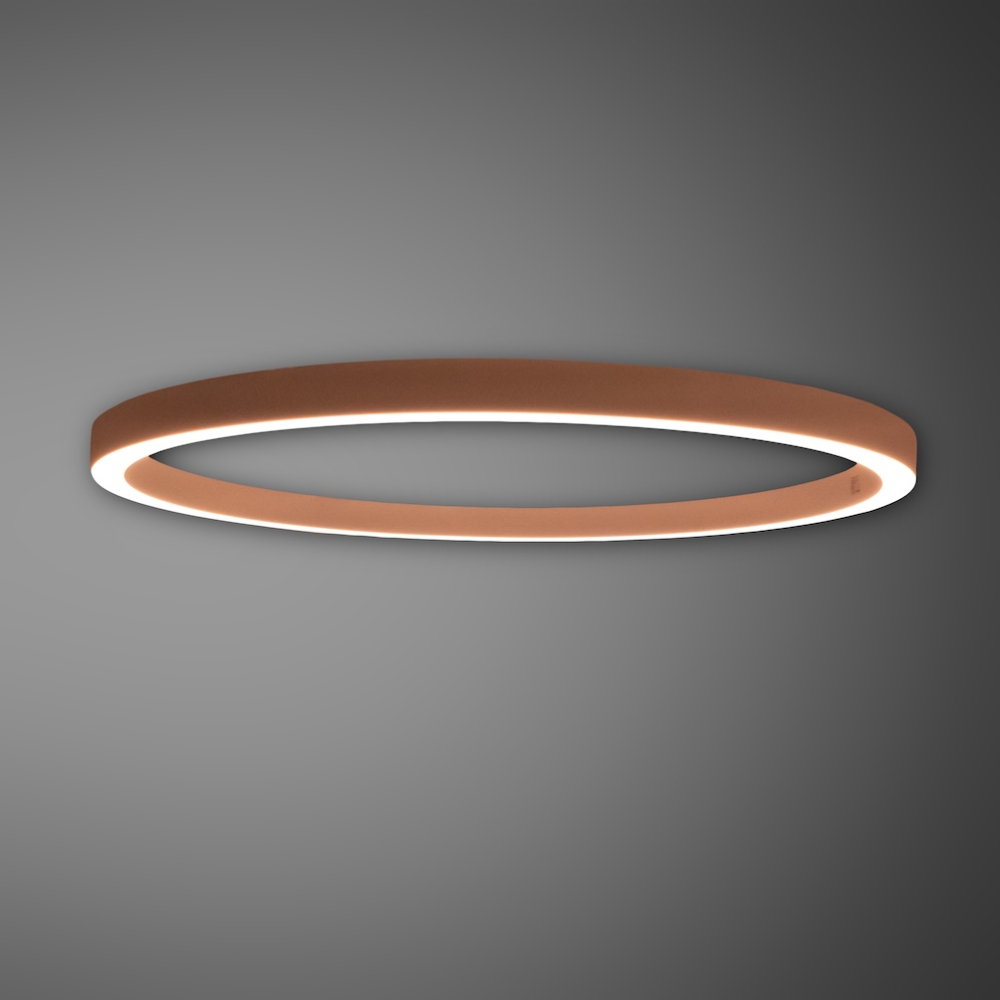

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_denna
-

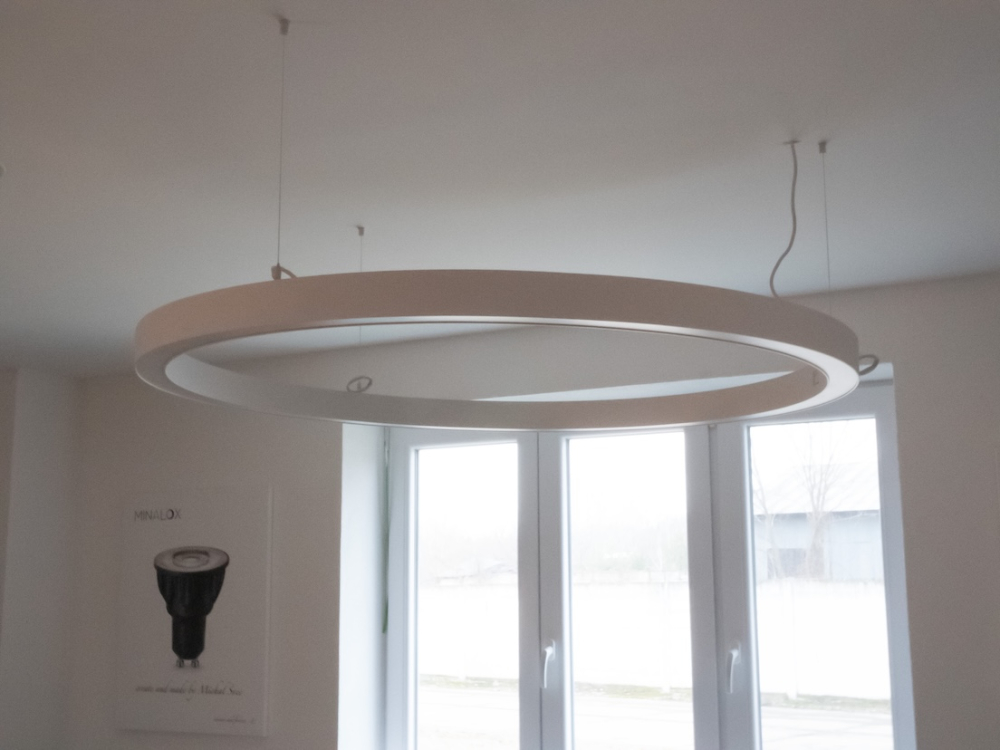

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_show1
-

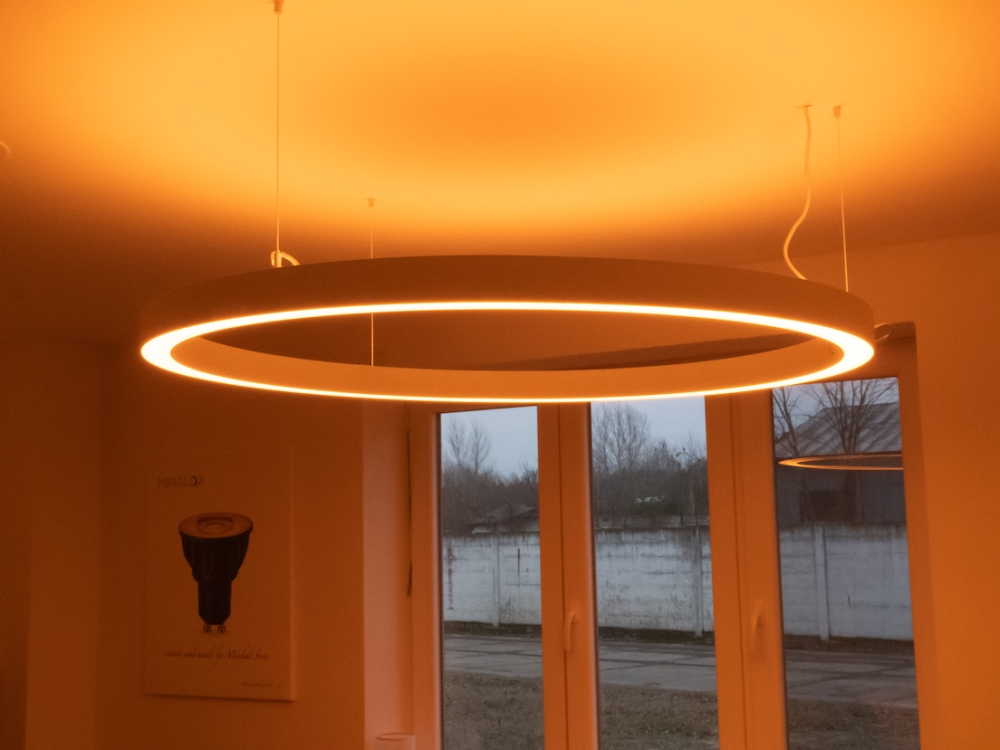

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_show2
-

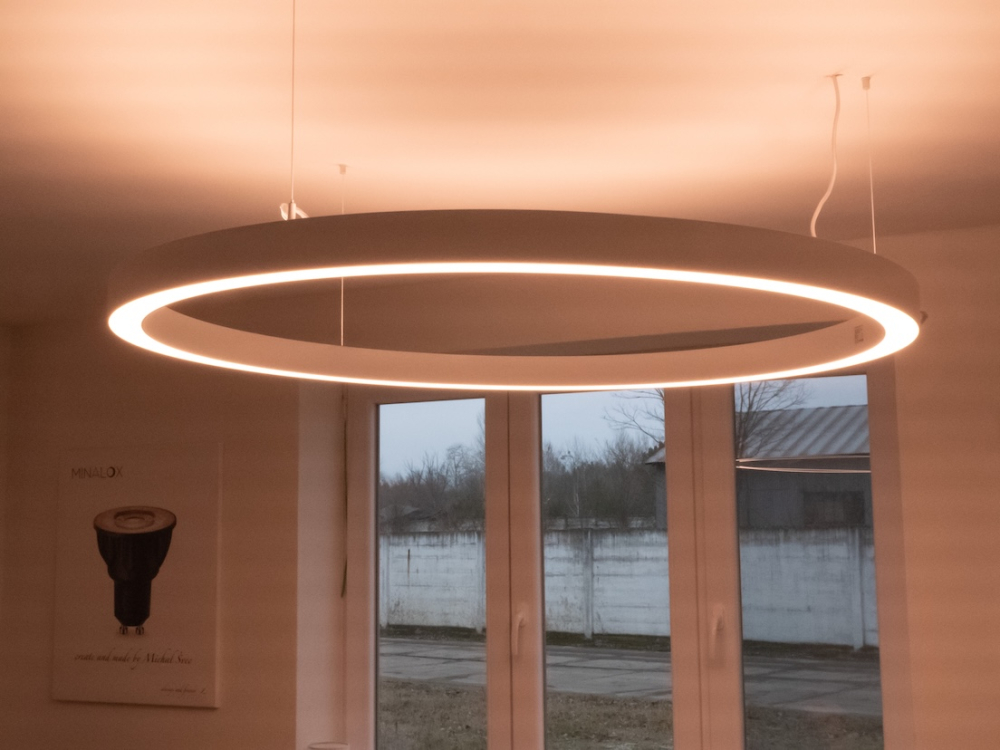

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_show3
-

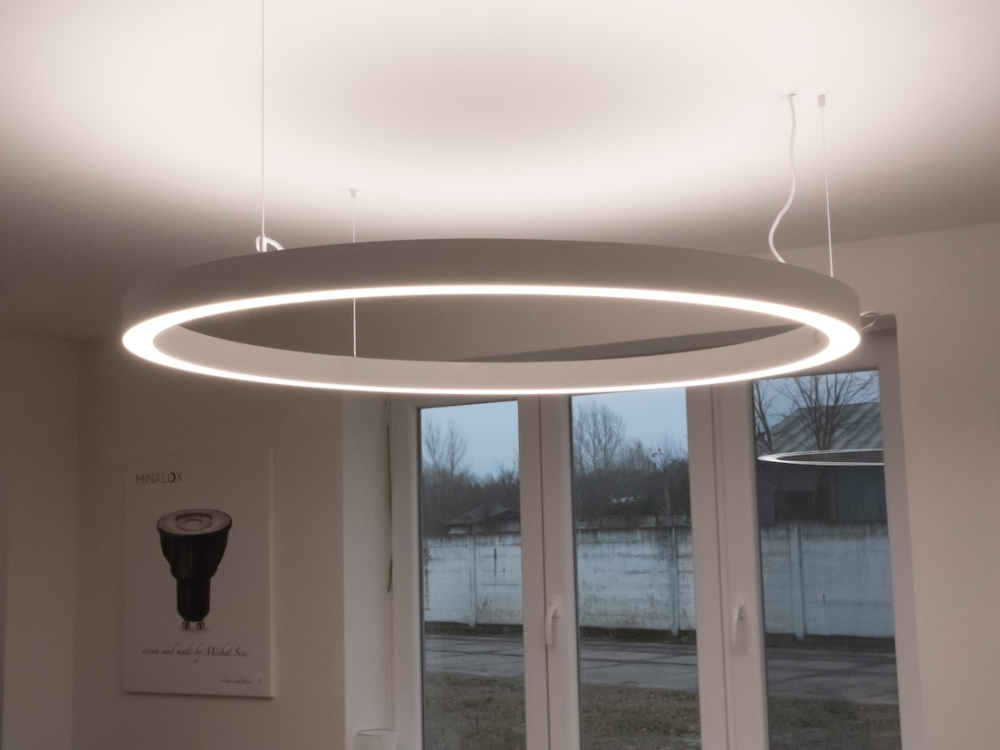

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_show4
-

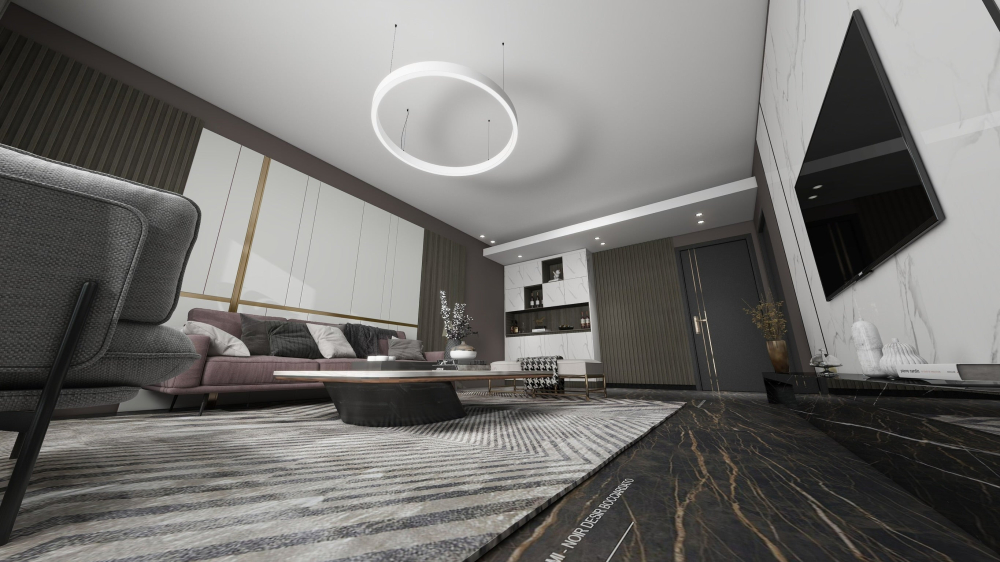

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren5
-

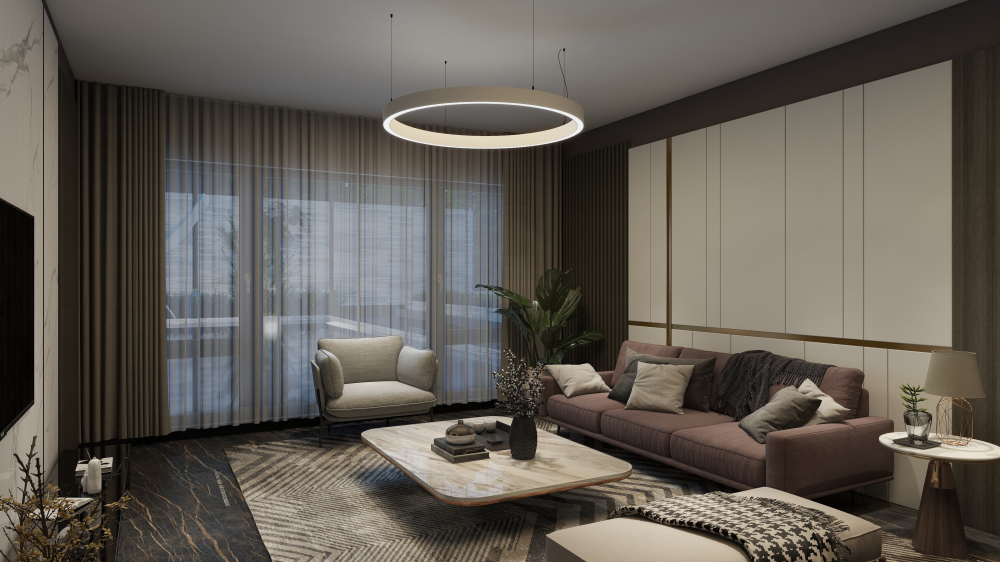

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren6
-

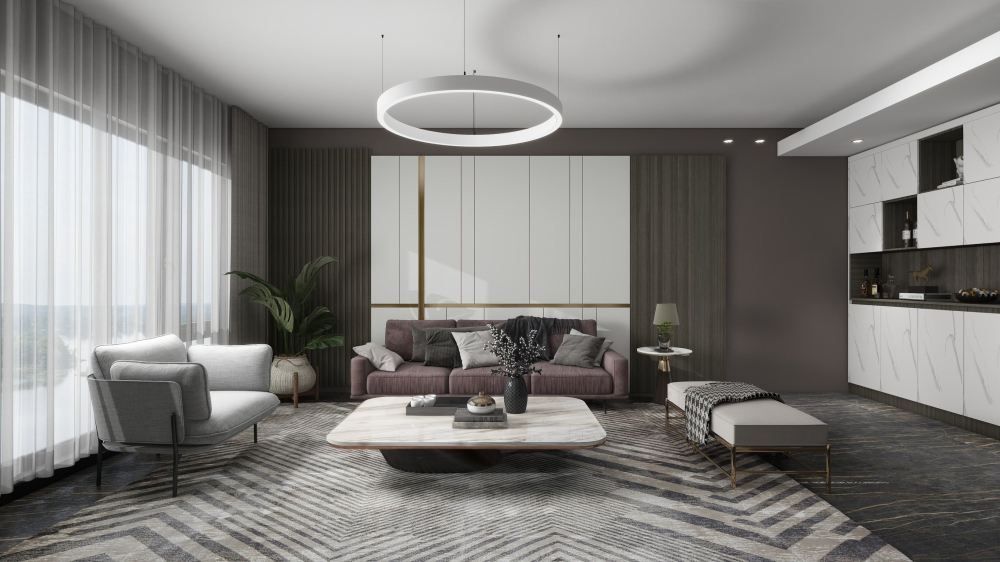

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren7
-

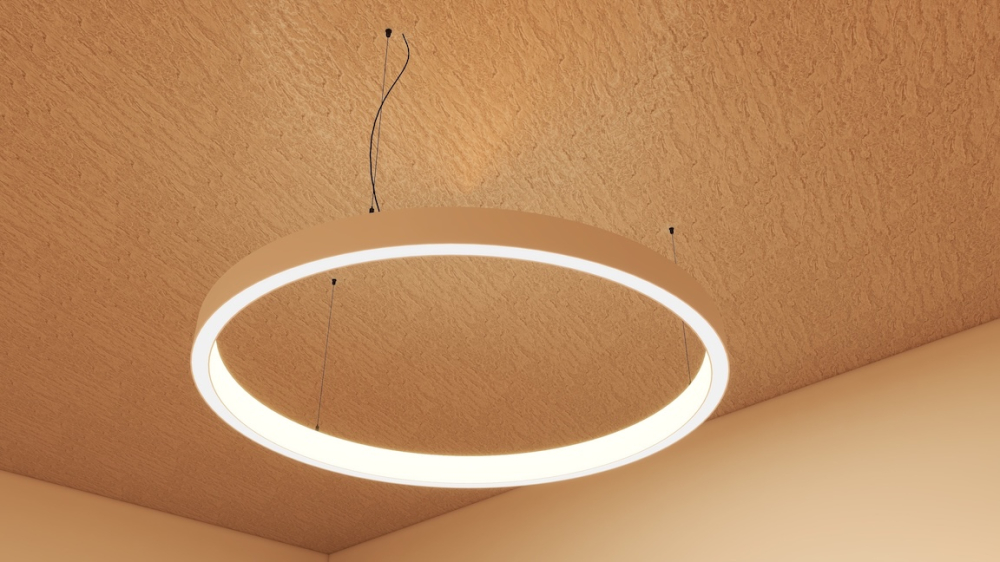

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren1
-

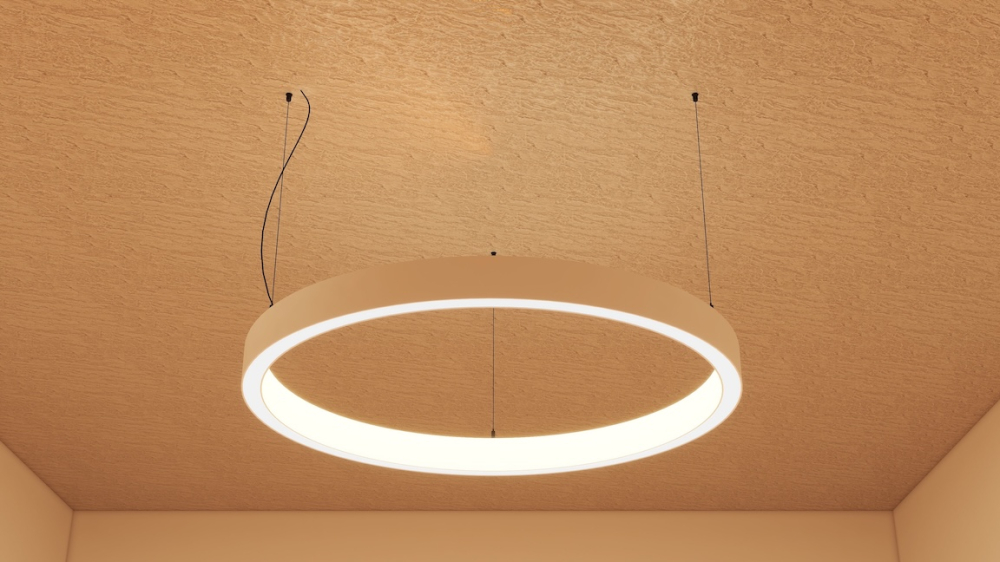

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren2
-

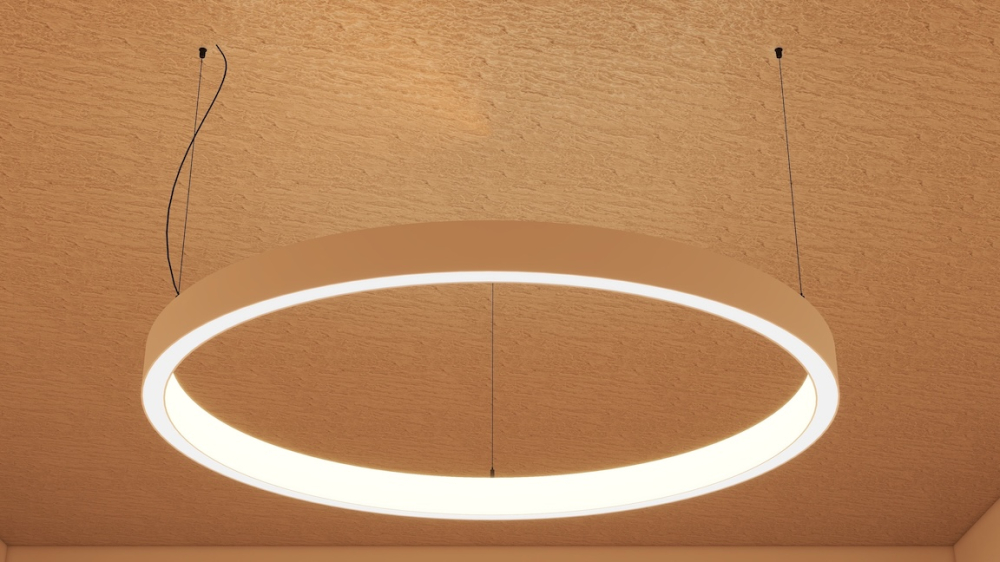

MINALOX_stmievatelne_svietidlo_RING5060_D1000_1800K_4500K_105D_biele_DC24V_smarthome_ren3
